| Brand Name: | HSINDA |
| Model Number: | customization |
| MOQ: | 300KG |
| Price: | Negotiable |
| Payment Terms: | TT, Western Union, MoneyGram |
| Supply Ability: | 5000 tons each years |

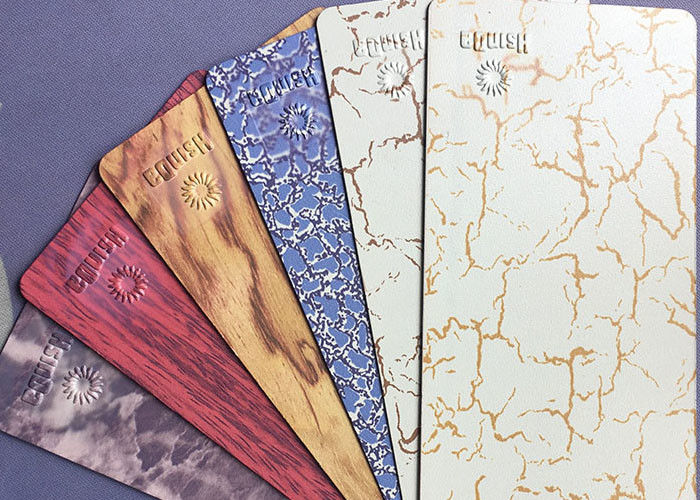

Marble Texture Transfer Film Decorative Powder Coating For Funiture
Product Information
What is Powder Coating?
Powder Coating is a dry finishing process created by an electric charge that causes a dry powder to fuse to the surface of the metal. This is then baked in a curing oven to achieve a smooth coating. It is usually used to create a hard finish that is tougher than conventional paint.
Applications of Product
| ♦Electrical Household Appliances | ♦Aerospace Area |
| ♦Automotive Electronics | ♦Fitness Equipment |
| ♦Track Traffic | ♦Medical Devices |
| ♦Petroleum Pipes, Valve | ♦Tools & Hardware |
| ♦LED Lights, Outdoor Lamps | ♦Radiator & Heat Sink |
| ♦Glass Decoration | ♦External Facilities |
Instruction
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-30CM |
| Curing Temperature | 180-200℃,10 min-15 min |
Categories and Performances of Powder Coatings
Product detail
| Type |
Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
| Color | RAL&Pantone color |
| Surface Finish | Superior gloss and color retention |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
| film thickness | Not less than 100μm |
Product process
Product test
Quality control
| Test Item | Test Method | Test Result |
| Film Thickness | ISO2360 | 60-80um |
| Pencil Hardness | ASTMD 3363 | HB-H |
| Bending | ISO1519 | ≤10mm |
| Grid Test 1mm | ISO2409 | 0 Class |
| Impulse Test | ASTMD2794 | Pass |
| Cupping Test | ISO1520 | ≥8mm |
| Heat Resistance 1000 hours | ISO6270-1 | Popping<1mm |
| Shigh gloss mirror chrome sliver spray paint powder coating Spray 1000 hours | ISO9227 | Corrosion Spreading<1mm |
Hsinda powder coating, offers the best levelling and adhesion to metal surface, with above 60% DSM resin content.
Packing & Shipping
| Trade Terms | FOB, CIF, CRF, CNF |
| Payment Terms | T/T, L/C, West Union, PayPal etc. |
| Delivery time | 3-7 days after payment |
| Packaging | Size: 39*26*43 (unit:cm) Weight: N.W. 25kg G.W. 26kg |
| Shipping | By sea, by air, by courier |
Certificates
Company Information
Contact Us
Attn: Sue Su
Email: innocoat.sue@hsindapowdercoating.com
Phone/WhatsApp/Wechat: +86 13882064348
Instagram/Facebook: hsindapowdercoating_sue
|
